50ohm Low Loss RF Coaxial Cable RG174 with SMA MALE to SMA FEMALE Connector or Antenna

Product Categories

Oriental Huaray Group Limited

Contact Now

Name: 50ohm Low Loss RF Coaxial Cable RG174 with SMA MALE to SMA FEMALE Connector or Antenna
Brand: Huaray
Price: 1 USD

Place of Origin : China

Brand Name : Huaray

Certification : FCC, CE

Model Number : GPS Antenna

MOQ : 10pcs

Price : Negotiable

Packaging Details : Inner Staticproof Bag, External Cardboard Box

Delivery Time : In two or three days

Payment Terms : T/T, L/C, Western Union, MoneyGram, Paypal

Supply Ability : 10,000pcs per month

Contact Now

2G 3G 2.4Ghz 5g 5.8g 4G LTE Antenna SMA patch antenna 5dbi with extension cable RG174 3 meters SMA Male

Key Specifications/Special Features:

Dielectric antenna:

Center frequency: 1575.42 ± 3MHz

VSWR (in BW): 1.5:1

Bandwidth: ±5MHz

Impedance: 50Ω

Polarization type: RHCP

LNA/filter:

LNA gain (without cable): 28 ± 2dB (typical)

Noise figure: 1.5dB

DC voltages: 2.2 to 5V

DC current: 5 to 15mA

Mechanical:

Dimensions: 48 x 38 x 14mm

Mounting: magnetic/adhesive

Housing: black

Packaging dimensions: 120 x 95 x 20mm

Optional cable: RG174, 3m or others

Optional connectors: SMA/MCX/SMB/BNC or others

Environmental:

Working temperatures: -40 to 85°C

Humidity: 55 to 75% RH

Waterproof grade: IP67

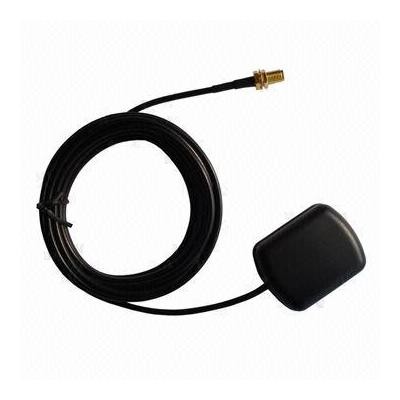

50ohm Low Loss RF Coaxial Cable RG174 with SMA MALE to SMA FEMALE Connector or Antenna Images
